Transition Rules

Description

Transition rules are OmniGibson's method for simulating complex physical phenomena not directly supported by the underlying omniverse physics engine, such as slicing, blending, and cooking. A given TransitionRule dynamically checks for its internal sets of conditions, and, if validated, executes its corresponding transition.

Transition Rules must be enabled before usage!

To enable usage of transition rules, gm.ENABLE_TRANSITION_RULES (1) must be set!

1. Access global macros via from omnigibson.macros import gm

Usage

Creating

Because TransitionRules are monolithic classes, these should be defined before OmniGibson is launched. A rule can be easily extended by subclassing the BaseTransitionRule class and implementing the necessary functions. For a simple example, please see the SlicingRule class.

Runtime

At runtime, each scene owns a TransitionRuleAPI instance, which automatically handles the stepping and processing of all defined transition rule classes. For efficiency reasons, rules are dynamically loaded and checked based on the object / system set currently active in the scene. A rule will only be checked if there is at least one valid candidate combination amongst the current object / system set. For example, if there is no sliceable object present in this scene, then SlicingRule will not be active. Every time an object / system is added / removed from the scene, all rules are refreshed so that the current active transition rule set is always accurate.

In general, you should not need to interface with the TransitionRuleAPI class at all -- if your rule implementation is correct, then the API will automatically handle the transition when the appropriate conditions are met!

Types

OmniGibson currently supports _ types of diverse transition rules, each representing a different complex physical phenomena:

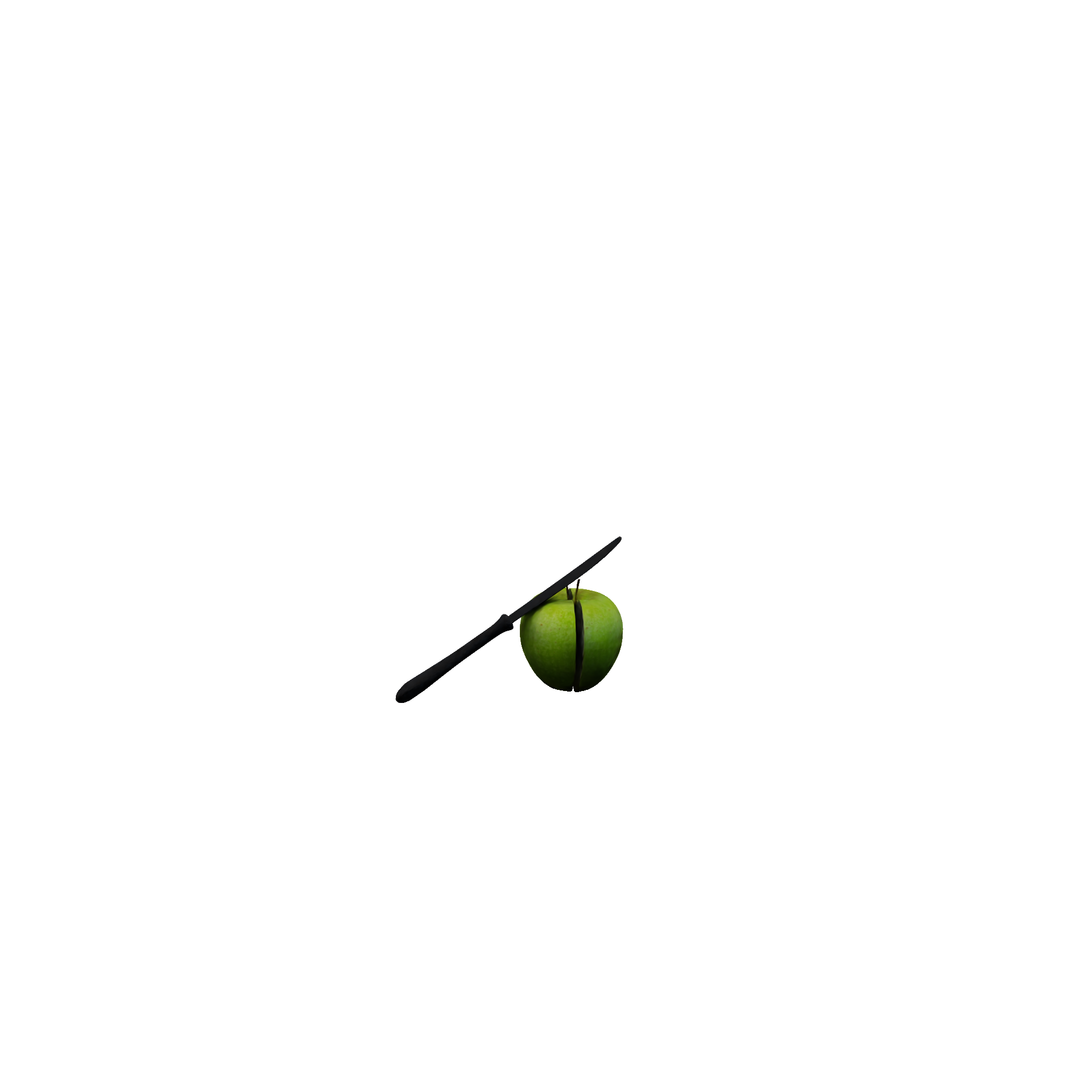

SlicingRule Encapsulates slicing an object into halves (e.g.: slicing an apple). Required Candidates 1+ sliceable objects 1+ slicer objects Conditions slicer is touching sliceable object slicer is active Transition sliceable object is removed x2 sliceable half objects are spawned where the original object was

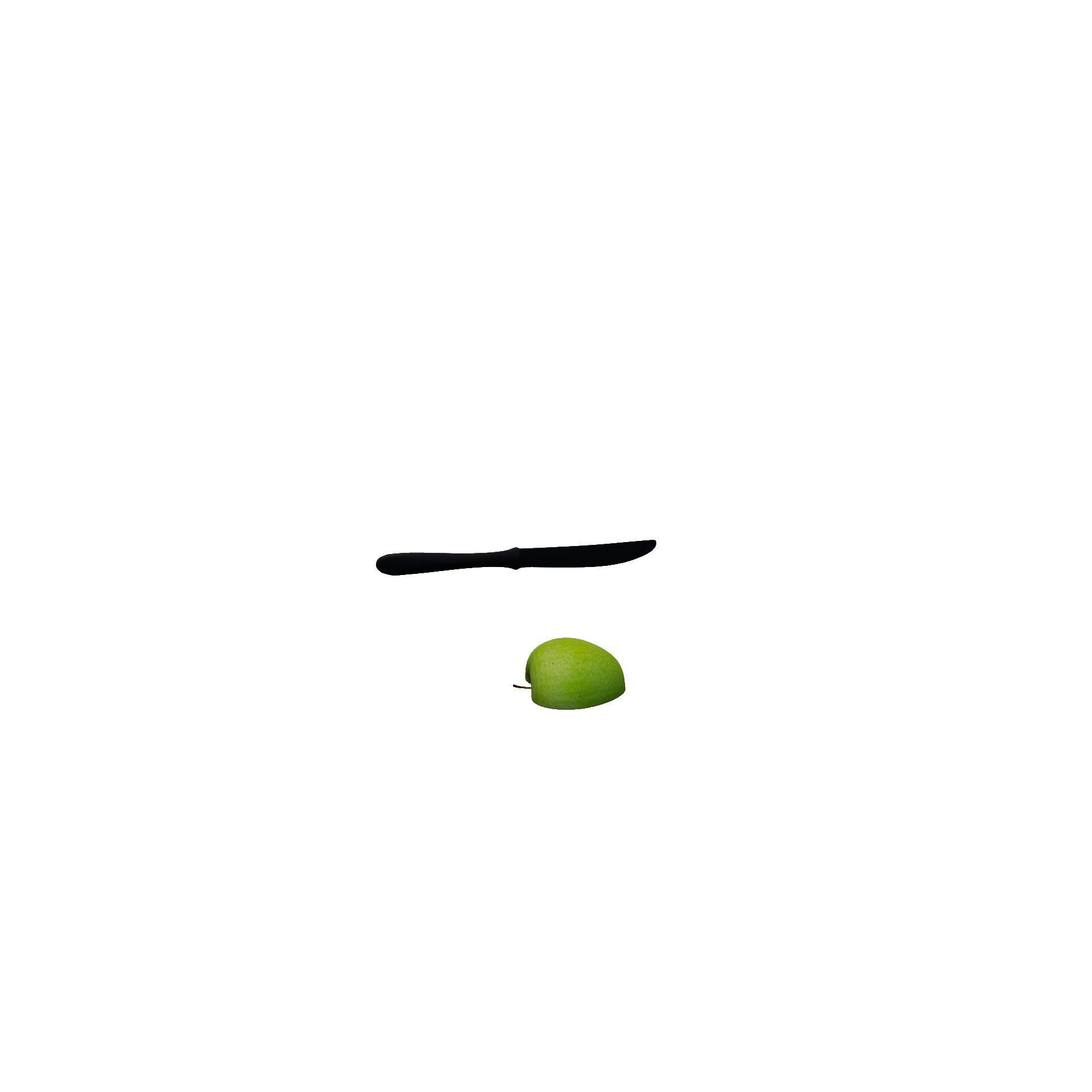

DicingRule Encapsulates dicing a diceable into small chunks (e.g.: dicing an apple). Required Candidates 1+ diceable objects 1+ slicer objects Conditions slicer is touching diceable object slicer is active Transition sliceable object is removed diceable physical particles are spawned where the original object was

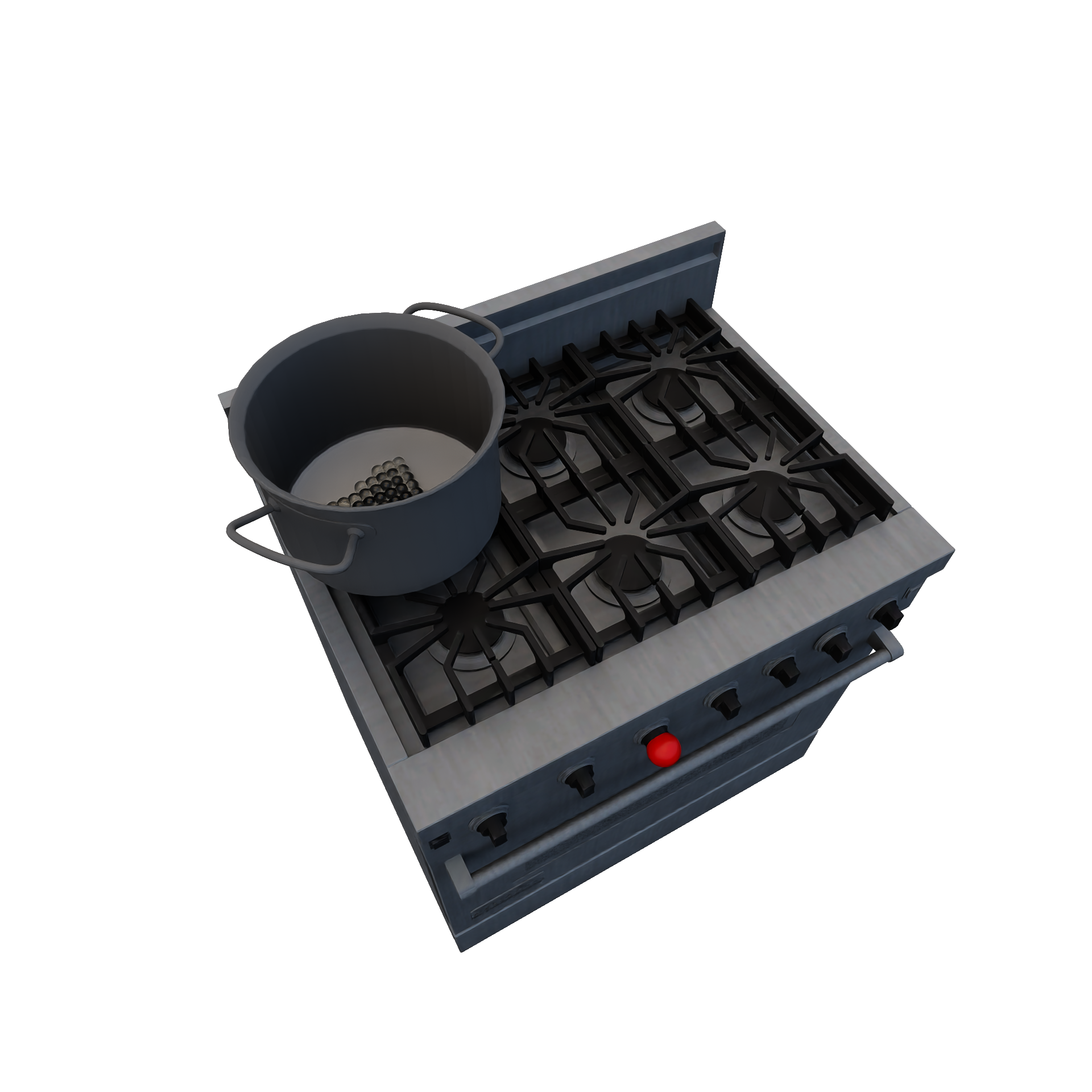

MeltingRule Encapsulates melting an object into liquid (e.g.: melting chocolate). Required Candidates 1+ meltable objects Conditions meltable object's max temperature > melting temperature Transition meltable object is removed melted__<category> fluid particles are spawned where the original object was

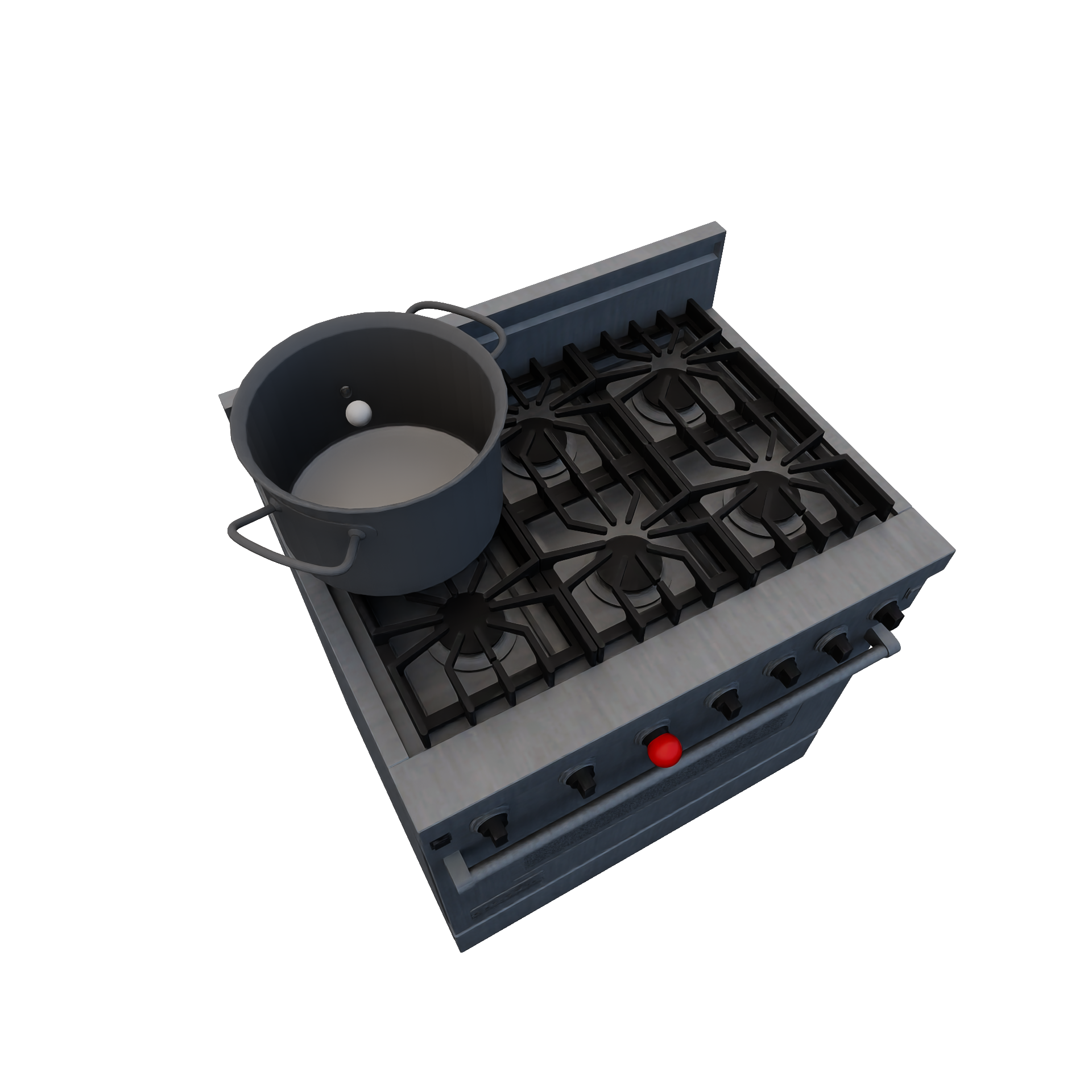

CookingPhysicalParticleRule Encapsulates cooking physical particles (e.g.: boiling water). Required Candidates 1+ fillable and heatable objects Conditions fillable object is heated Transition particles within the fillable object are removed cooked__<category> particles are spawned where the original particles were

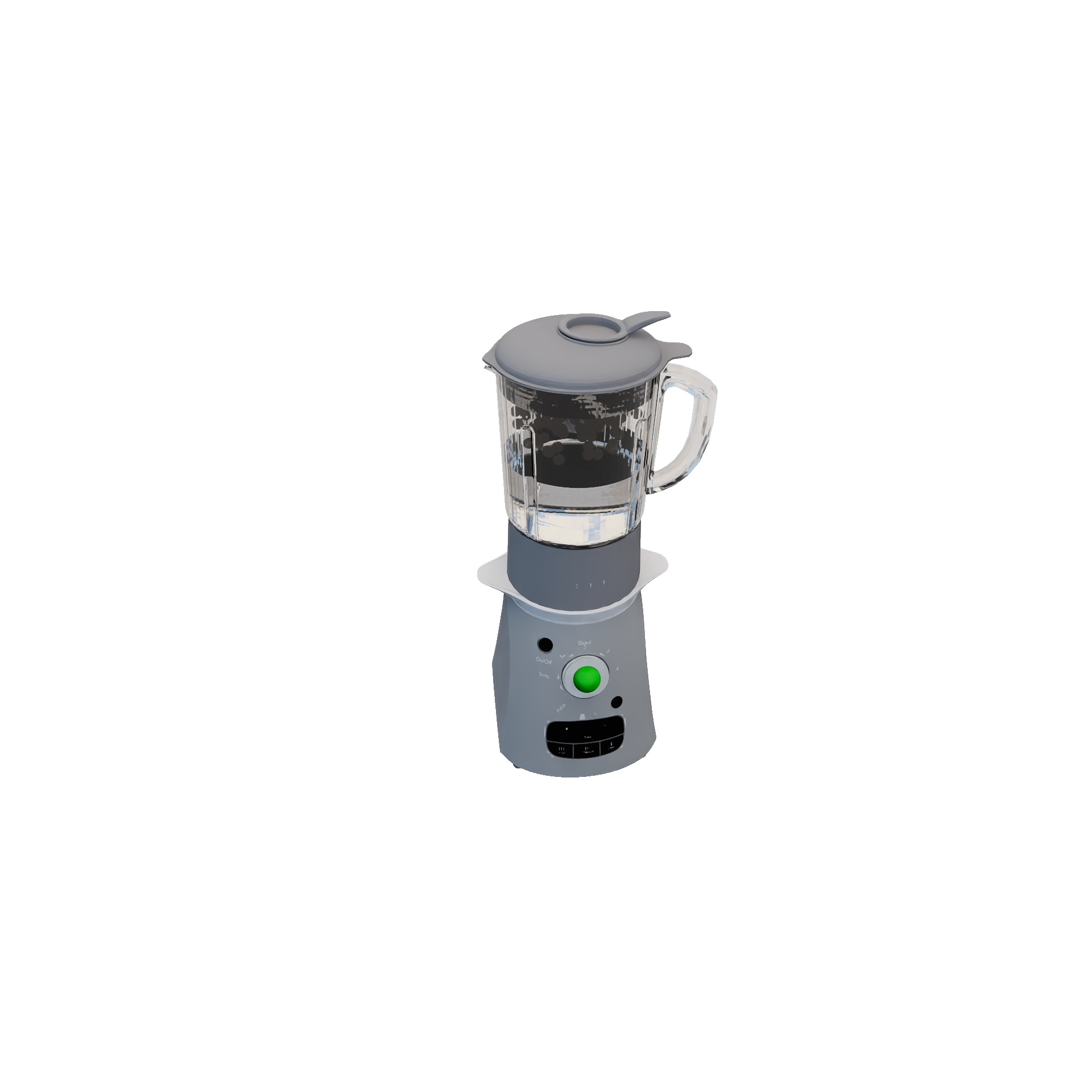

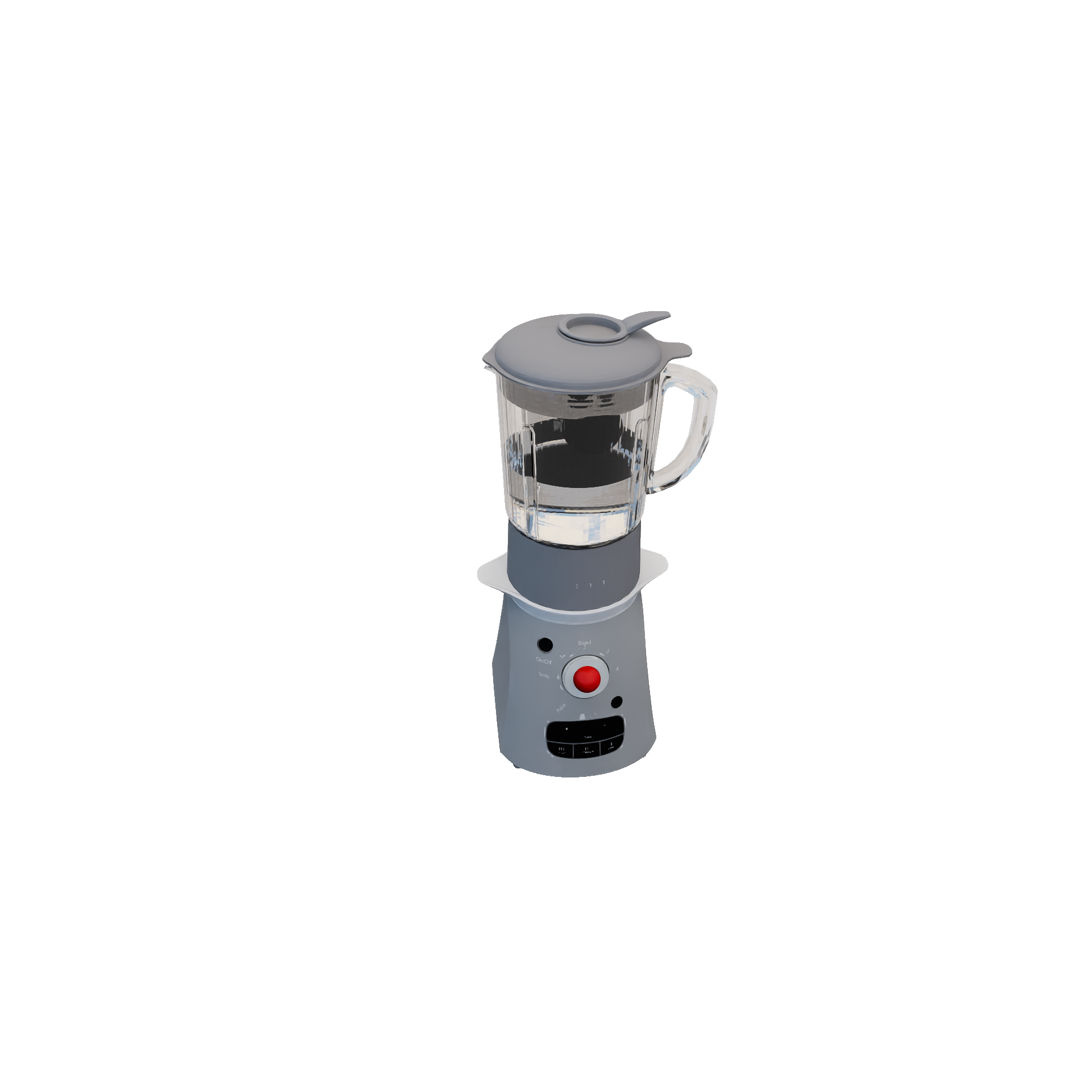

ToggleableMachineRule Encapsulates transformative changes when a button is pressed (e.g.: blending a smoothie). Valid transitions are defined by a pre-defined set of "recipes" (input / output combinations). Required Candidates 1+ fillable and toggleable objects Conditions fillable object has just been toggled on Transition all objects and particles within the fillable object are removed if relevant recipe is found given inputs, relevant output is spawned in the fillable object, otherwise "sludge" is spawned instead

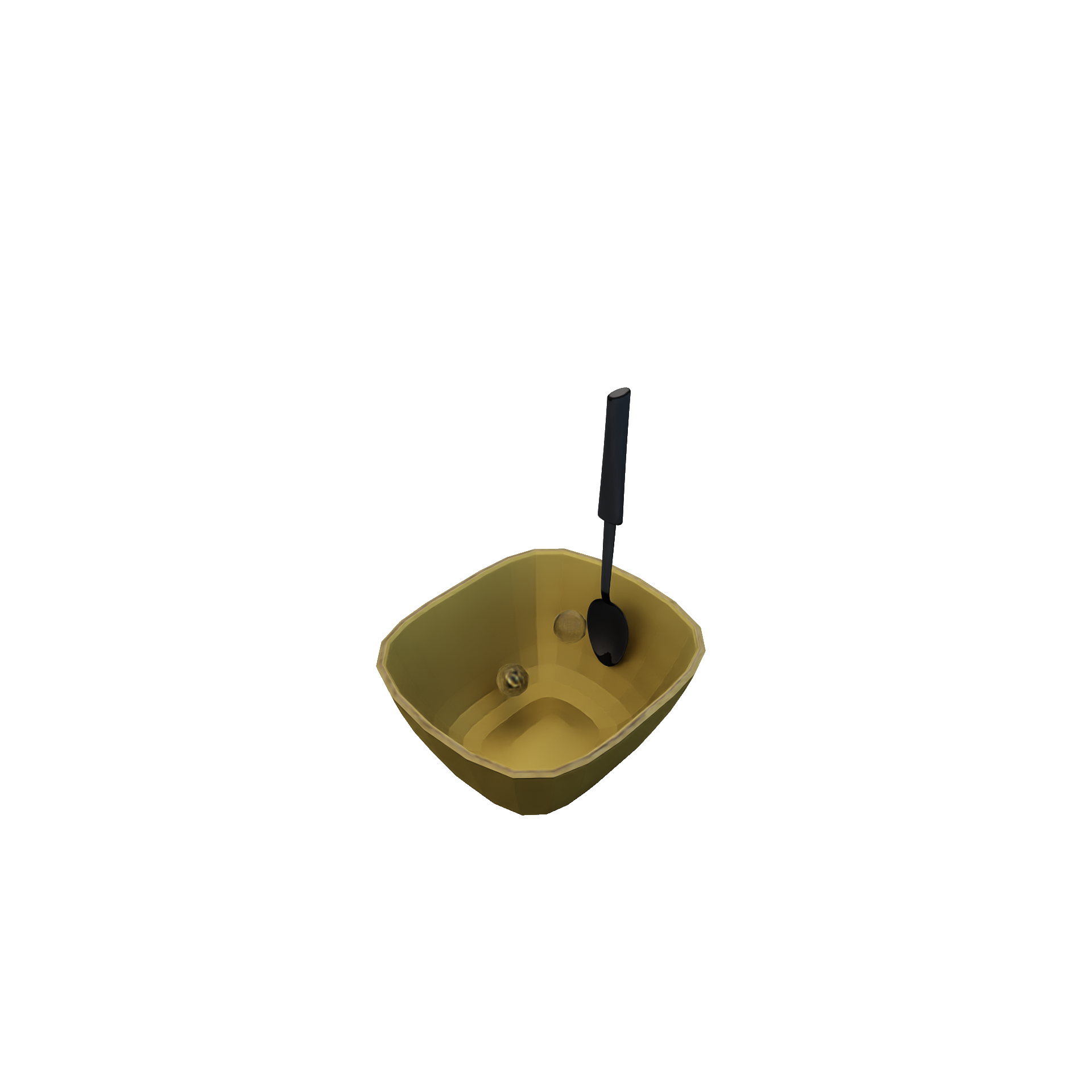

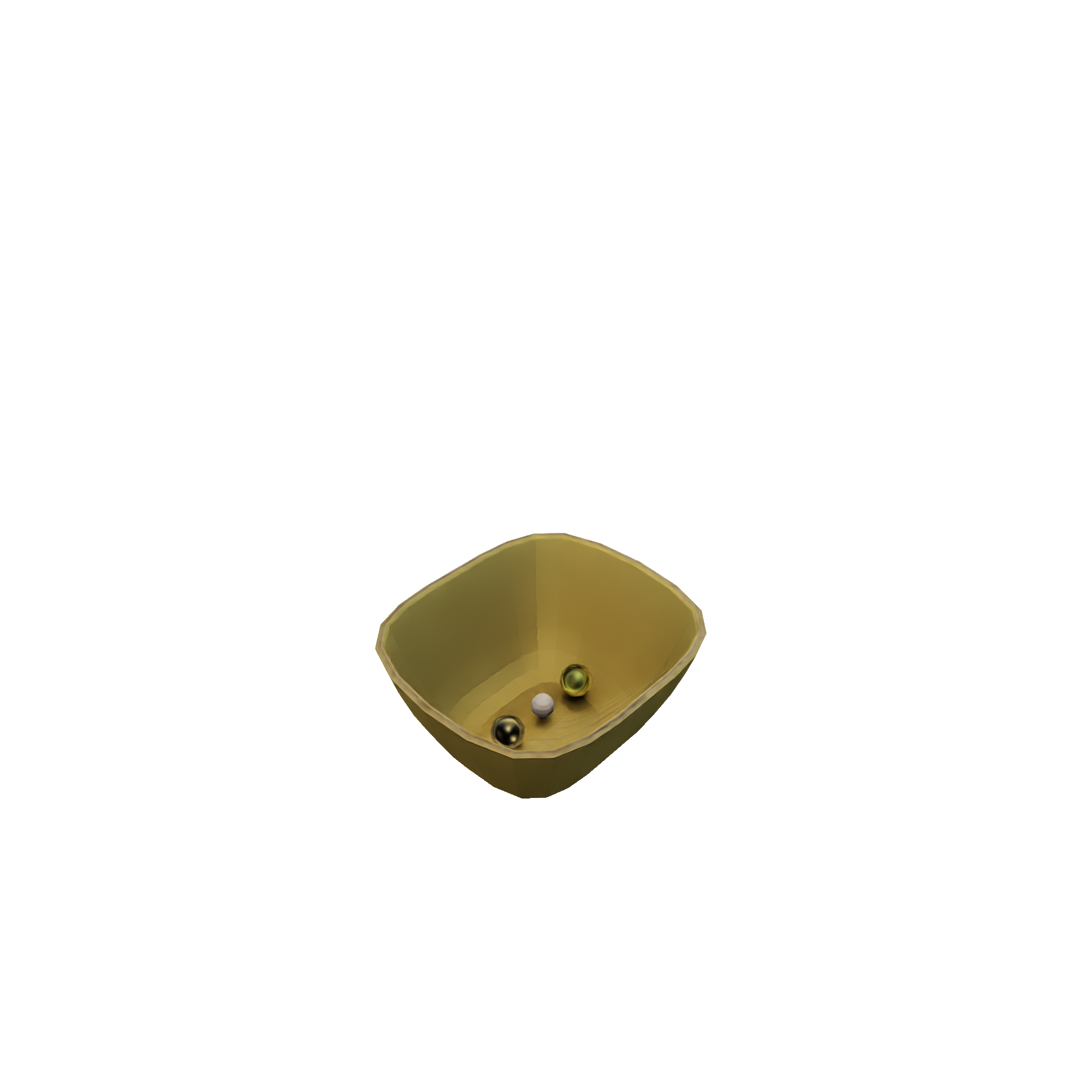

MixingToolRule Encapsulates transformative changes during tool-driven mixing (e.g.: mixing a drink with a stirrer). Valid transitions are defined by a pre-defined set of "recipes" (input / output combinations). Required Candidates 1+ fillable objects 1+ mixingTool objects Conditions mixingTool object has just touched fillable object valid recipe is found Transition recipe-relevant objects and particles within the fillable object are removed relevant recipe output is spawned in the fillable object

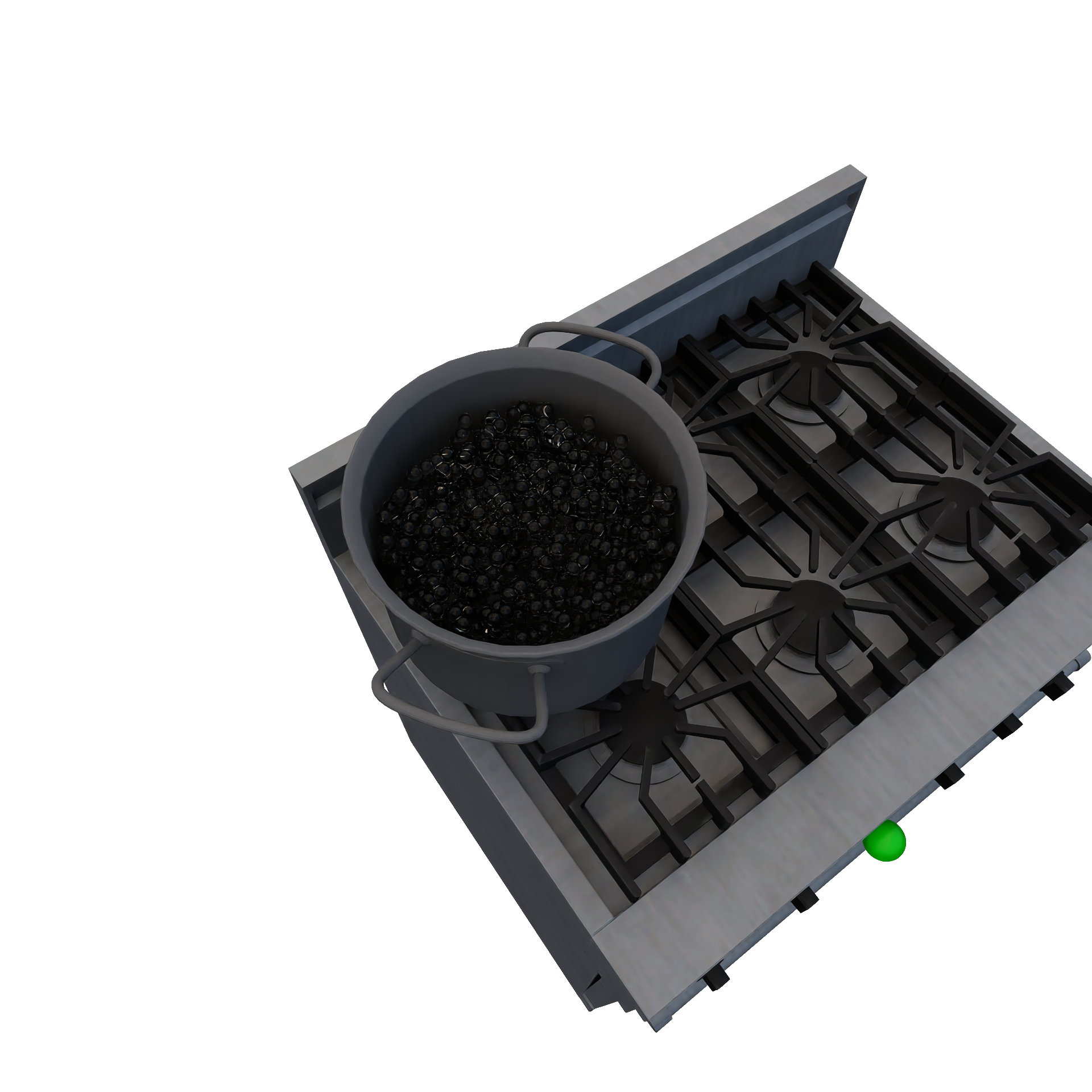

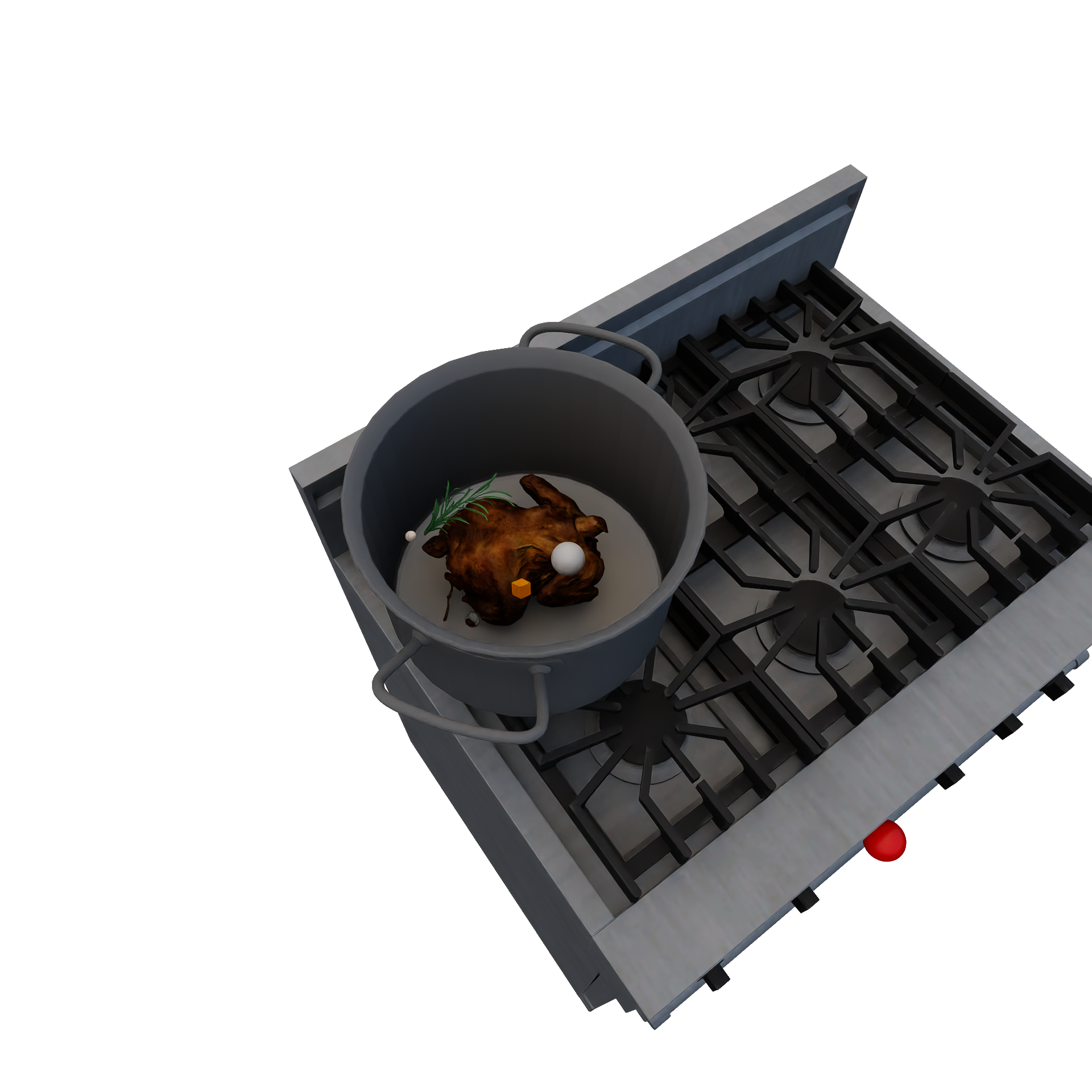

CookingRule Encapsulates transformative changes during cooking (e.g.: baking a cake). Valid transitions are defined by a pre-defined set of "recipes" (input / output combinations). Required Candidates 1+ fillable objects 1+ heatSource objects Conditions heatSource object is on and affecting fillable object a certain amount of time has passed Transition recipe-relevant objects and particles within the fillable object are removed relevant recipe output is spawned in the fillable object

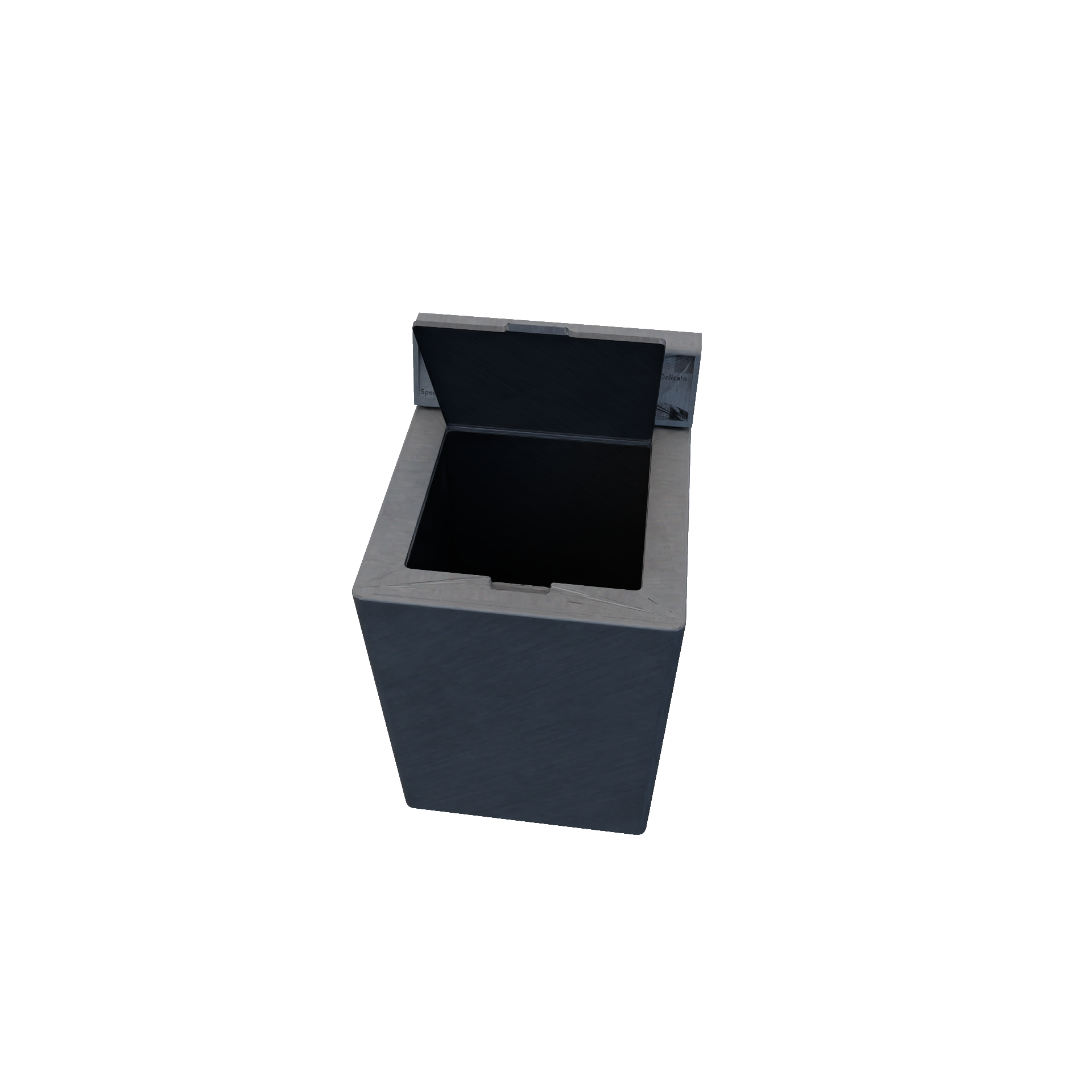

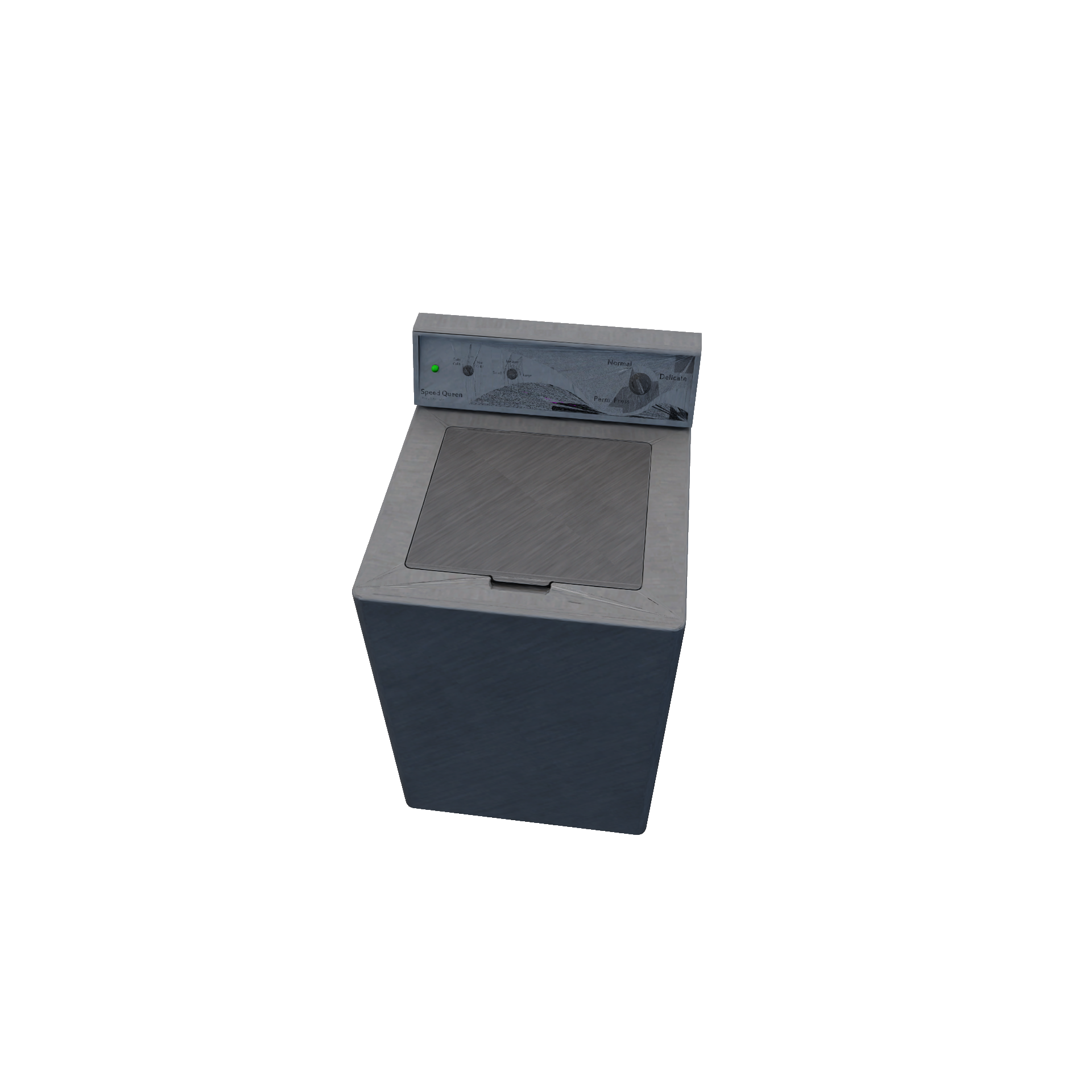

WasherRule Encapsulates washing mechanism (e.g.: cleaning clothes in the washing machine with detergent). Washing behavior (i.e.: what types of particles are removed from clothes during washing) is predefined. Required Candidates 1+ washer objects Conditions washer object is closed washer object has just been toggled on Transition all "stain"-type particles within the washer object are removed all objects within the washer object are covered and saturated with water

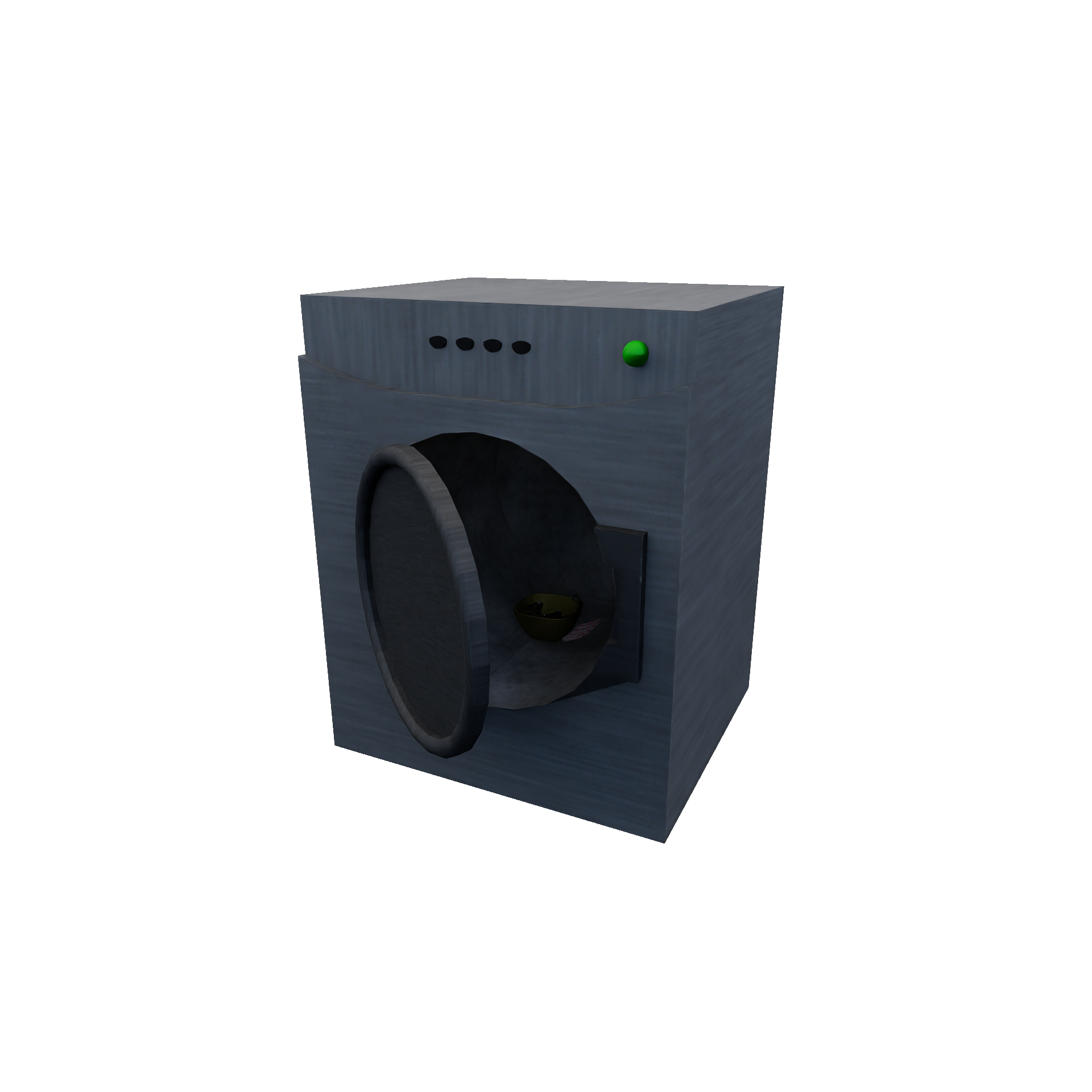

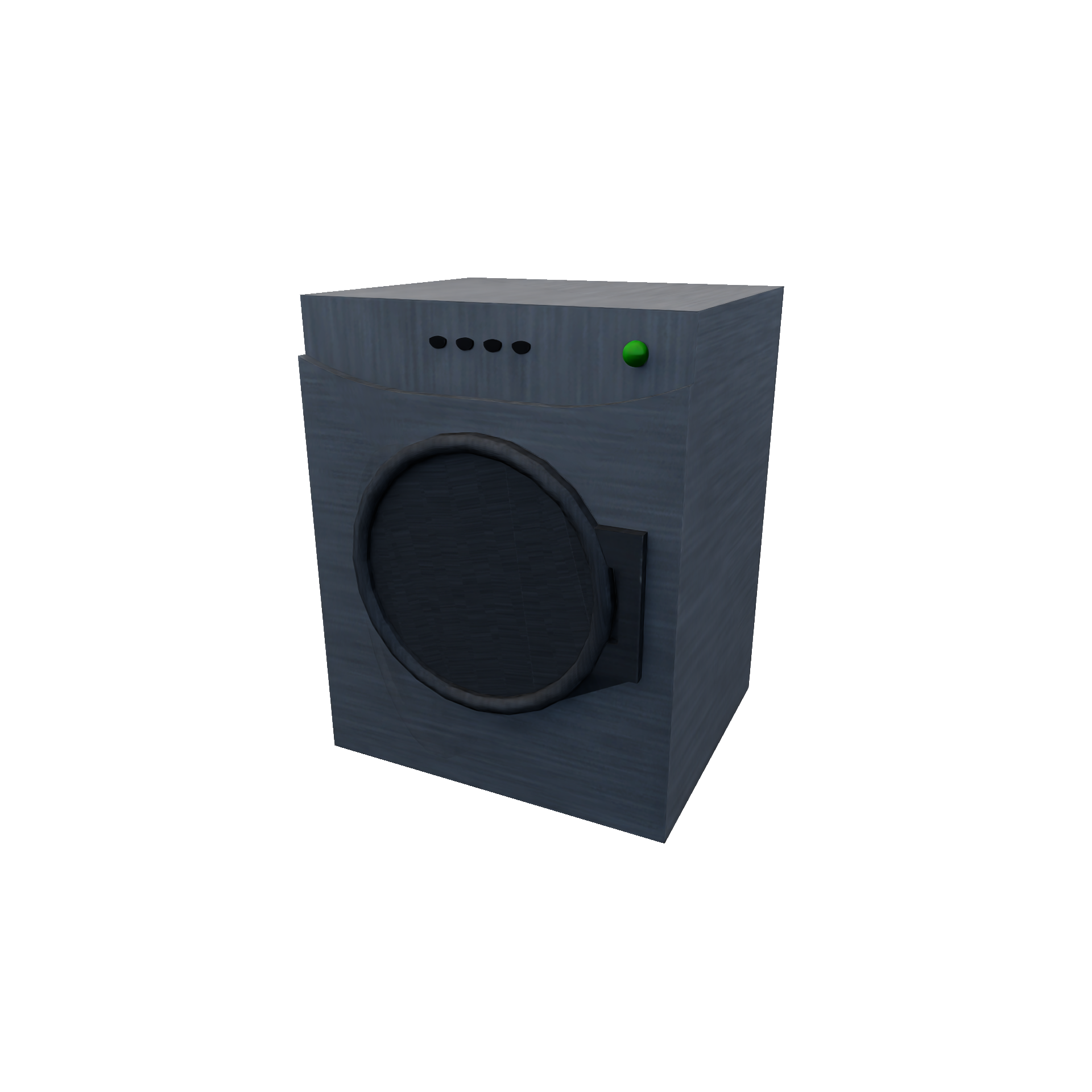

DryerRule Encapsulates drying mechanism (e.g.: drying clothes in the drying machine). Required Candidates 1+ clothes_dryer objects Conditions washer object is closed washer object has just been toggled on Transition all water particles within the washer object are removed all objects within the washer object are no longer saturated with water
